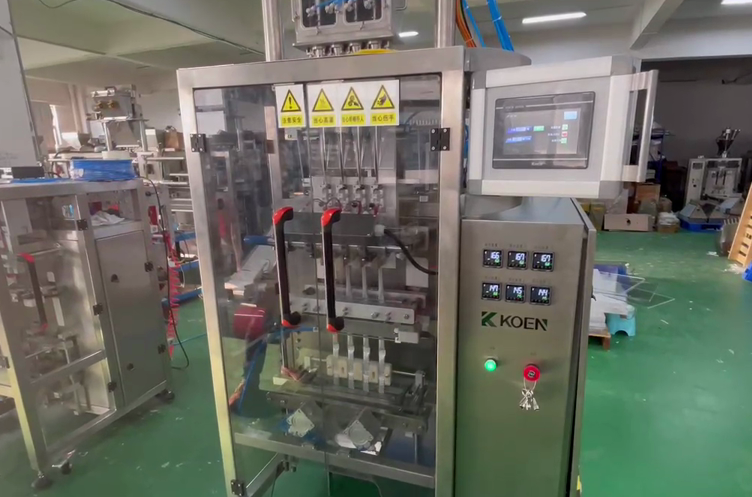

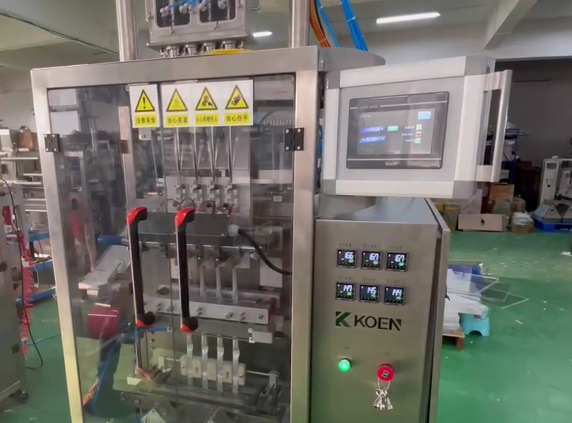

2 / 4 / 6 lanes powder stick sachet pack automatic Packaging machine

Open-Fill-Seal Flat pouch packing machine, good for regular pillow bag. Full servo technology machine ,fast in packing, stable in operating, Durable machine with reasonable price.
Flexible to fill and pack various product such as powder, liquid ,viscous liquid, granule, tablet , solid ,candy, stick product.
Hundres machines already served in Food, beverage, cosmetics, personal care, household, chemicals and pharmaceutical industry.
Technical characteristics:
1. PLC control with stable reliable biaxial high accuracy output and color touch screen, bag-making, measuring, filling,
printing,cutting , finished in one operation.
2. Separate circuit boxes for pneumatic control and power control. Noise is low, and the circuit is more stable.
3. Film-pulling with servo motor double belt: less pulling resistance, bag is formed in good shape with better appearance, belt is resistant to be worn-out.
4. External film releasing mechanism: simpler and easier installation of packing film.
5. Adjustment of bag deviation just needed to be controlled by the touch screen. Operation is very simple .
6. Close down type mechanism , defending powder into inside of machine.
Product Paramenters
Model
KN2-220
KN4-440
KN6-440
Bag length
30-140mm
30-140mm
30-140mm
Bag width
10-30mm
10-50mm
10-32mm
Max roll film width
220mm
440mm
440mm
Packing speed
30-60bags/min/lane
50-100bags/min/lane
80-120bags/min/lane
Air pressure
0.65mpa
0.65mpa
0.65mpa
Air consumption
0.2m³/min
0.2m³/min
0.2m³/min
Power supply
220VAC/50Hz
220VAC/50Hz
220VAC/50Hz
Power
2.0KW
2.0 KW
2.2 KW
Overall size
1100*990*2100mm
1100*990*2100mm
1100*990*2100mm
Weight
350kg
400kg
450kg
Details
Machine Parts

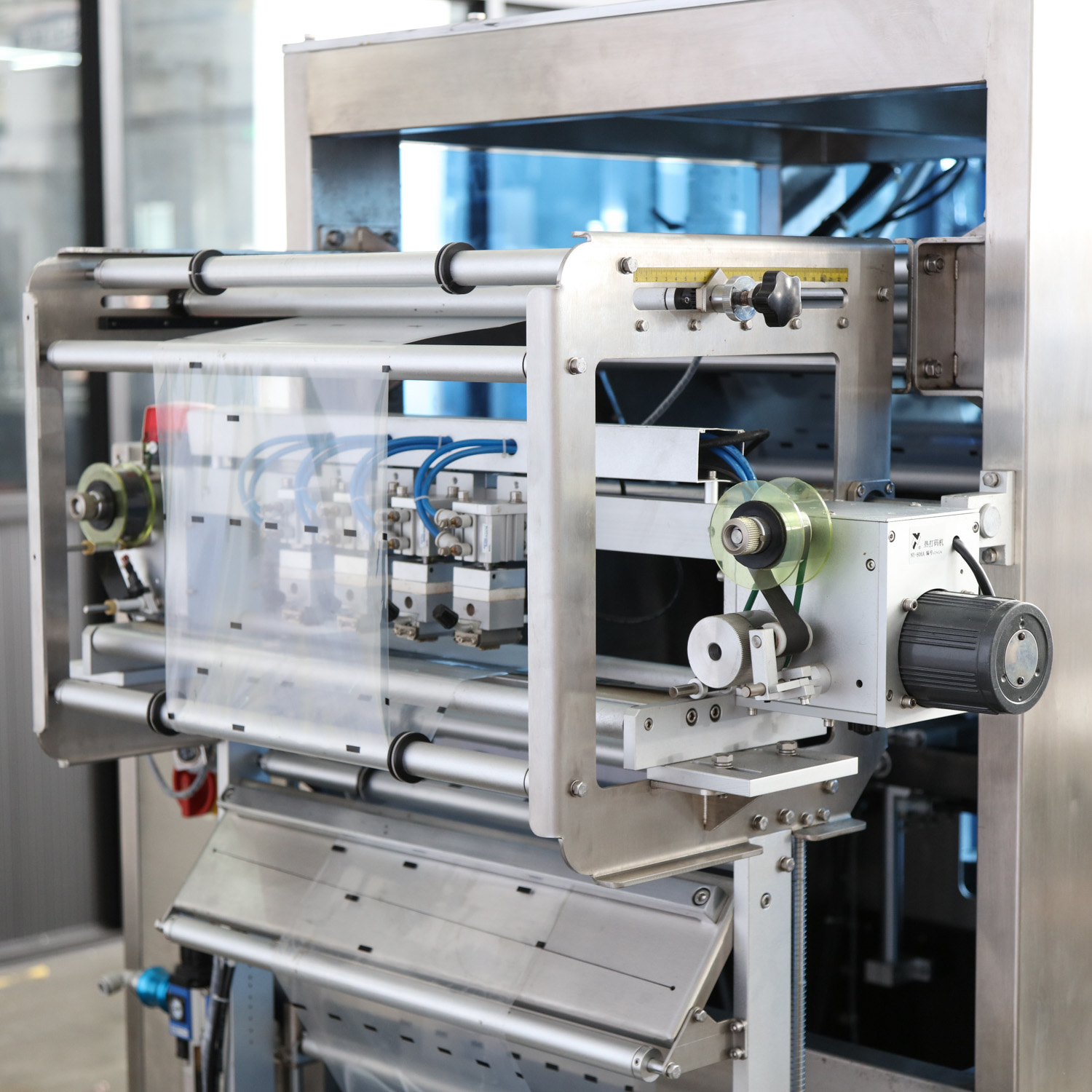

Servo pouch-pulling system
1,Easy Computerized Specification change
2,Stable pouch pulling with less deviation
3,Large torquemoment qualified for full-load running

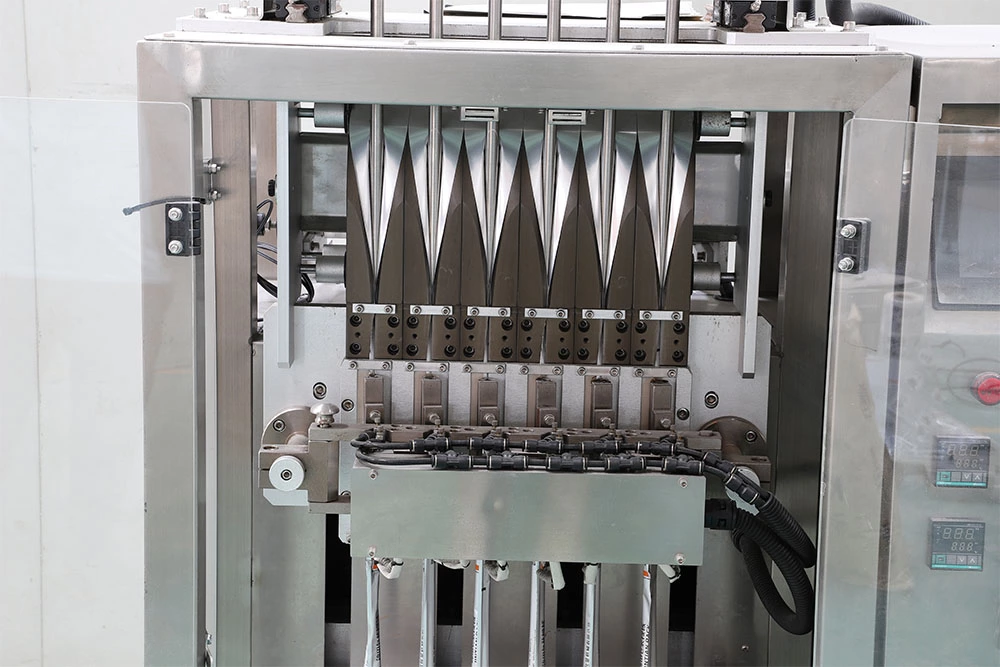

Multi-lane Filling

1,Multi-lane filling make huge improvement to packing speed and capacity
2,Accurate filling,less deviation

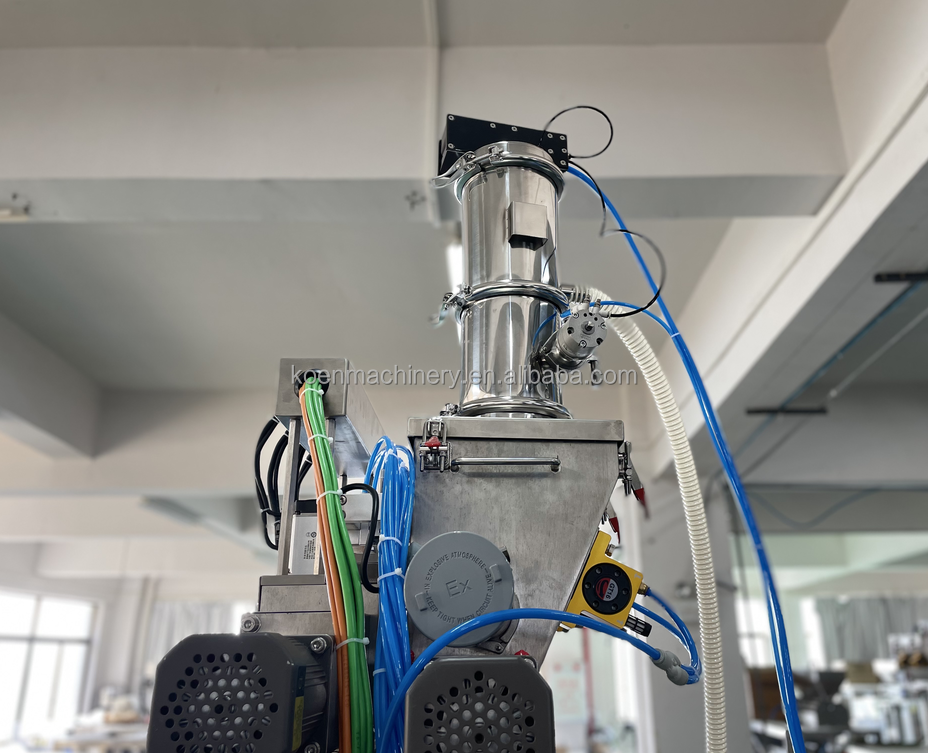

Multi-lane auger filter machine
Each lane with one servo motor driver screw &stirring motor,stable and accurate

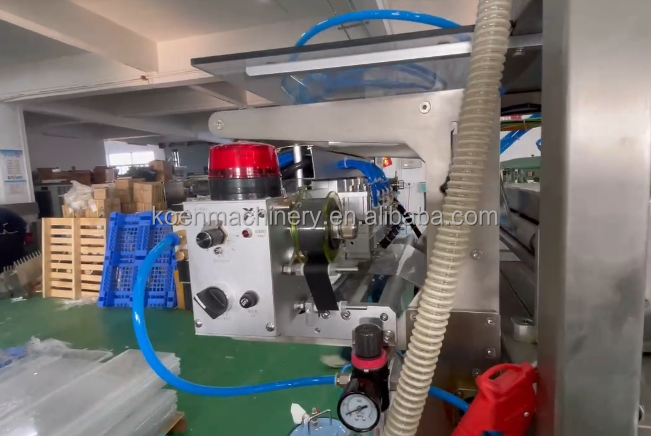

Date printer
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding MachinePET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PLC electric control box
Siemens PLC control
Color Touch Screen .
Panasonic servo motor driving pulling film
Siemens Frequency inverter
